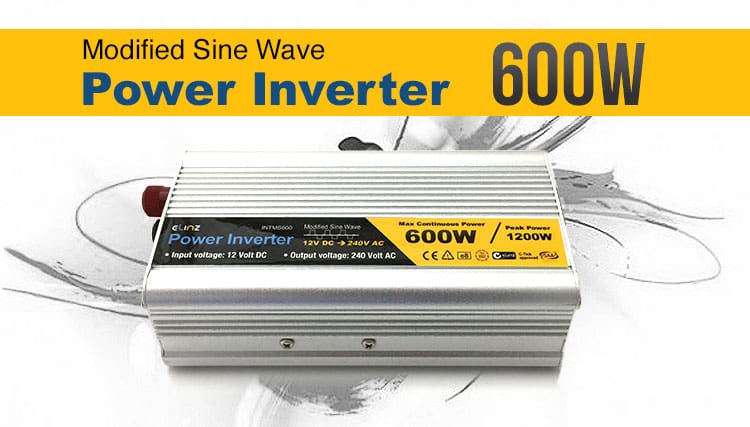

600W / 1200W 12V-240V Power INVERTER Modified Sine Wave Camping Caravan Boat
SKU: INTMS600
Efficient use of DC
- It efficient uses DC power to run simple unductions and battery can last longer.
Less Delicate to Use
- It can run ordinary equipments or appliances.
Affordable Price
- Used in simple systems and can be bought on a lower price.
High Efficiency
- This inverter can achieve >90% highest efficiency making it more useful, reliable and can be used on more appliances around you.
Modified Sine Wave Output Wave Form
- The High Performance Modified Sine Wave Inverter an economical solution.
USB Charging Port
- Convenient to use with USB charging port
Labels
Dimensions
Product Views
MORE INFORMATION
With this 600W Modified Sine Wave Inverter you can just hook it up to your car 4WD, caravan or boat battery, and you've got power to run your appliances just like at home.
Elinz power inverter is compatible with any 12V battery, it gives you standard AC power just about anywhere. And with automated shutdown functions it makes for perfectly safe driving, protecting you from overloading, overheating and short-circuiting. The nicely compact unit can be easily store in your boot or under the seat. You are guaranteed to experience the top range in the market giving you a complete peace of mind. Place your order today!
Functionality and Advantages
When to use Modified Sine Wave Inverter?
Normally, modified sine wave inverters are cheaper than a pure sine wave inverter and they are used in simple systems.
A modified sine wave inverter can be used for appliances that don’t have any delicate electronics or audio equipment that may pick up the choppy wave and produce a hum. Like for example Old tube TVs and motors with brushes generally worked with modified sine wave. Some appliances are well-matched with a modified sine wave; others are not so always check with the manufacturer.
They normally use DC power more efficiently than PSW inverters wherein battery will last longer. If you want to run normal light bulbs and induction or shunt motors, an Modified Sine Wave inverter will be good to use. Though if you are having second thoughts if appliance will run well on MSW, make sure to check it before plug in or contact the manufacturer.
Guidelines in Choosing the Right Inverters
1. Identify the appliance that you are planning to use the inverters.
2. Check the voltage of your appliance.
3. Check the starting power of the appliance based on the table provided below.
4. After checking Appliance voltage and Starting Power, do the computation to be able to identify the right inverters for you.
5. Computation formula: appliance voltage x starting power = Peak Power of appropriate Inverters
6. Example Computation:
1. Appliance: TV
2. Voltage: 1000w
3. Starting Power: 3-4 times
a. 1000w (appliance voltage) x 3 (starting power) = 3000w Peak Power of appropriate inverters
1. This shows that 1500w Inverters will work for your appliance because this inverter has a peak power of 3000w.
b. 1000w (appliance voltage) x 4 (starting power) = 4000w Peak Power of appropriate inverters
1. This shows 2000w Inverters will work for your appliance because this inverter has a peak power of 4000w.
So what's the Inverter that fits your needs?
- The Inverters with higher Peak Power is the one recommended for you.
- Based on the example, 2000w Inverters is the right one to buy to make sure it will work on your appliance.
** If you need assistance in choosing the right inverters for your appliance feel free to contact us anytime
Elinz is not liable or responsible for any damage caused by any misuse or negligence in using our products. Products provided have specifications on proper way of using them.If in any case, it is used and caused damage to property, the owner have sole liability on the situation.
Elinz is always here to assist you if you need guidance. Feel free to contact us.
PRODUCT HIGHLIGHTS
- The High Performance Modified Sine Wave Inverter an economical solution.
- Convenient to use with USB charging port.
- Output Wave: Modified sine wave.
- Latest inverter technology.
- >90% efficiency
- Inverter can achieve >90% highest efficiency making it more useful, reliable and can be used on more appliances around you.
- Compact design
- Nicely compact unit can be easily store in your boot or under the seat. Continuous output of 1,000W
- Australian-standard power point.
- Peak output of 2000W.
- Low-battery alarm and safety shutdown.
- Safe to Use
- Low voltage input protection, High voltage input protection, Short circuit protection, Output overloading protection.
- Overload, over-voltage, overheat protection.
- Low-battery alarm and safety shutdown.
ITEM DESCRIPTION
- Continuous Power: 600W
- Peak Power: 1200W
- NO load current draw: <0.3A
- Output Wave: Modified sine wave
- Socket Type: Australian standard
- Input DC voltage Range: DC9.7V-15.5V
- Output Voltage Range: AC240v
- Input Voltage: DC12V
- Overload Protection: Shuts down output, re-power to reset
- Output Short Protection: Auto Shut-off
- Output Frequency Range: 50+/- 3Hz
- Max Outer Temperature: < 65ºC
- Max Power Efficiency: > 90%
- High Voltage Cut Off Level: 14.5V-15.5V
- Low Voltage Alarm Level: DC 10.4-11.V
- Low Voltage Cut Off Level: DC 9.7V-DC10.3V
- Built-in Cooling Fan
- Product Size: 200mm x 91mm x 58mm
- Weight : 0.5Kg

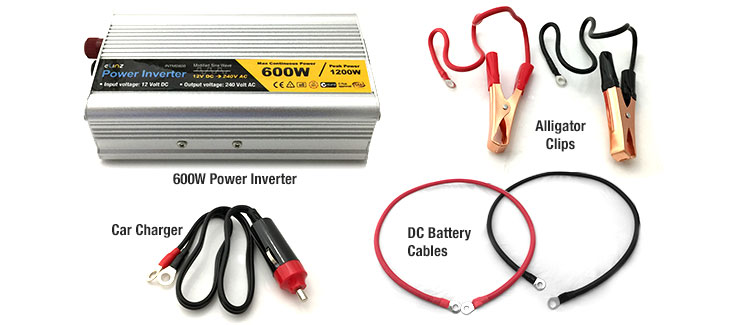

WHAT'S INCLUDED
1. 600W Power Inverter
2. Alligator Clips
3. DC Battery Cables
4. Car Charger
