20" LED Light Bar 3 Rows bundle H7 100W Headlights Kit Seoul CSP Chips Fanless

50000hrs life~Waterproof~12V/24V~Free Shipping

(SKU: LED3ROW20-CBLH7)
AUD $125.00
In Stock


Payment made easy

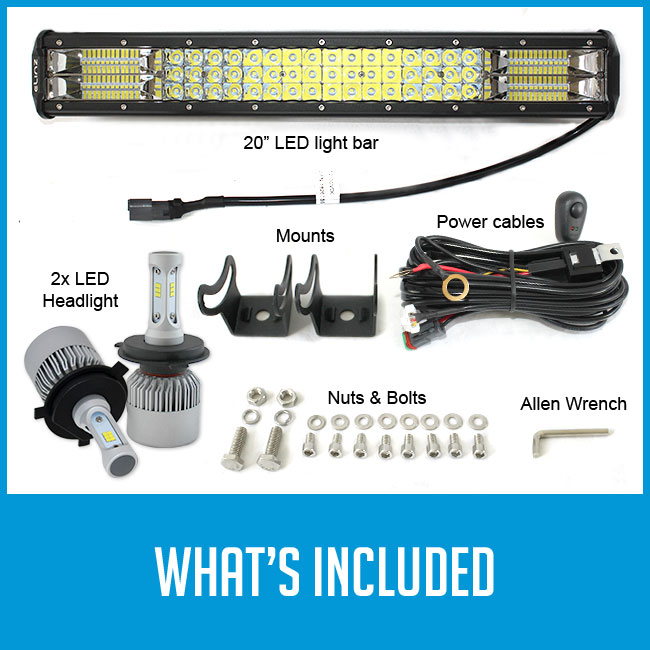

20" LED Light Bar 3 Rows bundle H7 100W Headlights Kit Seoul CSP Chips Fanless Offroad 4WD

Product Details
More Information
3 rows 20 inch LED light bar bundled with H7 100W Headlights Kit an innovation of lighting equipment for your vehicles has finally arrived. The combination of flood and spot beam on your light bar and high/low beam on your headlights a perfect night driving companion.

Light bar with headlights are seamless lighting device for your boat, off-road vehicle, heavy machinery, or farming equipment.

With a waterproof rating of IP68, you can be sure that the lighting device will continue to function despite being exposed to huge amounts of rain or flood water. Elinz LED light bar has a breather, which allows the moisture to get out and won't build up inside the lens. It has 10 degree spot beam, which can reach further distance and it has 120 degree flood beam which covers wider spread. Light bar is energy-efficient because it has 96 pieces of high-intensity Philips bulbs, it can deliver excellent light output without consuming too much energy.

While this LED Headlights have lumen output of 8000LM providing high efficient bright light. With heatsink installed, bulbs won’t heat up and it has an excellent heat-dissipation structure.

What are you waiting for? Better get them now!

Product Highlights

LED Light Bar

  • Beam: Combo (10 degree spot beam & 120 degree flood beam)
    • The Combination beam of flood and spot style illumination provide denser, further reaching light.
    • Reach further distance and covers wider spread
    • Deliver excellent light output
  • Color Temperature: White 7000K-7500K
    • The light output of these LED light bar is simply phenomenal, they produce a mass of clean white daylight (7000K-7500K), free of artifacts and focus dead spots.
    • They light the entire forward viewing area, giving greater visibility without eye fatigue.
  • Waterproof: IP68
    • Lighting device will continue to function despite being exposed to huge amounts of rain or flood water.
  • 50,000 hours life time
    • Saves up money as you can use the light bar for a long time
  • Lumen Output: 46080LM
  • LED light bar has a breather
    • Allows the moisture to get out and won't build up inside the lens
  • Material: Black Die-cast Aluminum profile
    • Provides structural integrity, ensuring that the light bar can perform well even under extreme conditions.

H7 Headlights Kit

  • Beam: Single Beam - Use either Hi or Low beam
  • 2pcs 50W(each) (100W pair) Headlight kit
    • Light Source Model: Seoul CSP LED chips
    • LED Quantity: 6PCS LED(each bulb) or 12pcs LED (set)
  • Cutting-edge Design (built-in driver)
  • 4000LM (per unit) 8000LM (pair) Luminous Flux
  • High power & super bright with exceptional long life(30,000 hours)
    • LED’s light up instantly and don’t have to warm up (unlike with halogen where the light is bright in the center, but faded around the sides).
  • Light Output 6500K - white light, sharp around the corners
  • Easy to install - Direct plug-in replacement, no extra wiring required
  • Heat Dissipation Theory: Aviation Aluminum 6063
    • Aluminum 6063 generally considered to be an extrusion alloy that is heat treatable for strengthening.
    • Better thermal contact to the substrate through Metal – metal interface of the bottom epi layer to the heat sink
  • IP67 waterproof protection grade
  • High Or Low Beam
    • Use either high or low beam. If the you want high beam and low beam, please get 2 sets of headlight.
  • Fanless Model
    • Perfect thermal design and applied with the newest Aviation Aluminum 6063 for heat dissipation.
  • Low Power Consumption - work compared to classic halogen bulbs.
    • LEDs are for instance used on certain car models and on a couple of other hybrids on which electricity plays a key role, not necessarily for the headlights as a top choice on the market.

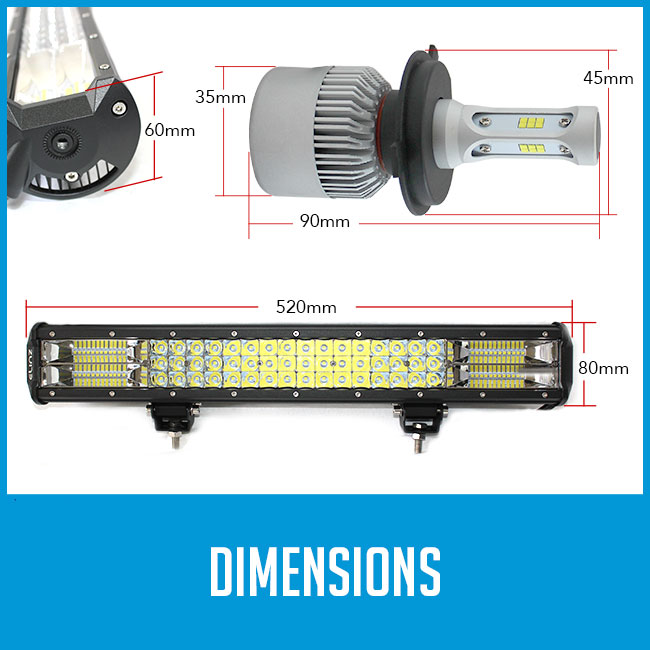

Product Specifications

LED Light Bar

  • LED Quantity: 96pcs High intensity Philips LEDS (48LED@spot beam,48 LED@flood beam)
  • Operating Voltage: DC 10-30V (Fit 12V/24V vehicle)
  • Beam: Combo (10 degree spot beam & 120 degree flood beam)
  • Color Temperature:White 7000K-7500K
  • Bracket : Post brackets with DT plug wire harness
  • Waterproof: IP68
  • Life time:about 50,000 hours life time
  • Material: Black Die-cast Aluminum profile, PC lens, solid bottom slip
  • Theoretical Lumens Output: 46080LM
  • Distance: 1 Lux @ 500 meters
  • Warranty : 2 Years

H7 Headlights Kit

  • Input Power: 50W⁄pc - 100W⁄pair
  • Plug Type : H7, Easy installation
  • Light Source Model: Seoul CSP LED
  • LED Quantity: 6PCS LED hi/low beam or 12pcs LED for a pair hi/low beam
  • Beam Angle: 360 degree
  • Luminous Flux: 4000LM (per unit)8000LM(pair)
  • Voltage: DC 9-36V
  • IP Rate: IP67
  • Temperature Color: 6500k
  • Heat Dissipation Theory: Aviation Aluminum 6063
  • Operating Life: 30000H
  • Operating Temperature: negative 40°C ~ + 80°C

(LED3ROW20-CBLH7)

SKU LED3ROW20-CBLH7
Barcode # 0606015373704
Brand Elinz
Shipping Weight 2.5000kg
Shipping Width 0.820m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.008200m3
