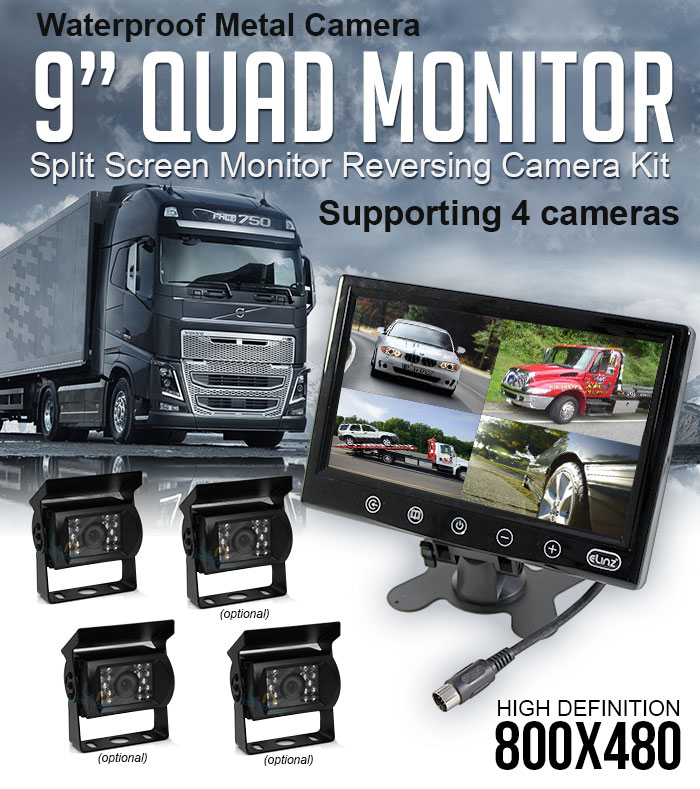

9" Quad Monitor Splitscreen Colour 4PIN CCD Reversing Camera Rearview 12V 24V

ADVANCE​D 4PIN~4xFull,Split,Triple,Quad display~12V 24V

(SKU: M9QUADRV4PIN10M)
From AUD $199.00
Qty. Image Description Price
9" Quad Monitor Splitscreen with 1 Camera Package
9" Quad Monitor Splitscreen with 1 Camera Package
(SKU: M9QUADRV4PIN10)
AUD $199.00
In stock

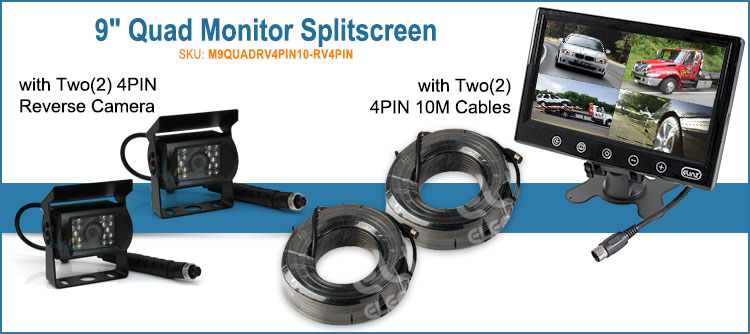

9" Quad Monitor Splitscreen with 2 Camera Package
9" Quad Monitor Splitscreen with 2 Camera Package
(SKU: M9QUADRV4PIN10-RV4PIN)
AUD $230.00
In stock

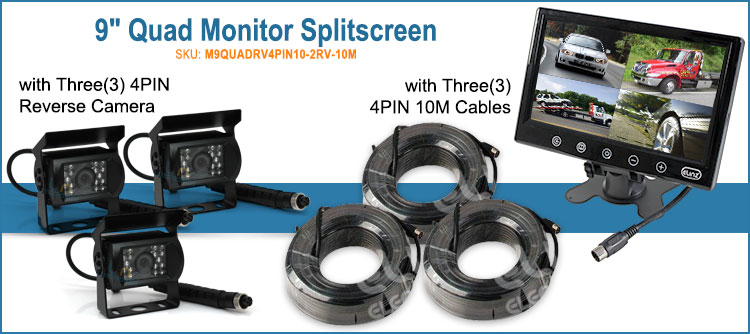

9" Quad Monitor Splitscreen with 3 Camera Package
9" Quad Monitor Splitscreen with 3 Camera Package
(SKU: M9QUADRV4PIN10-2RV-10M)
AUD $275.00
In stock

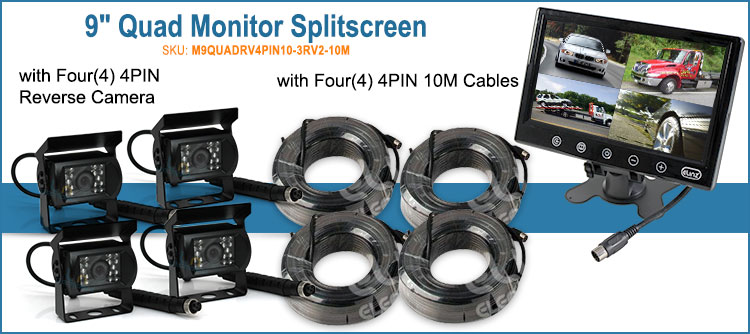

9" Quad Monitor Splitscreen with 4 Camera Package
9" Quad Monitor Splitscreen with 4 Camera Package
(SKU: M9QUADRV4PIN10-3RV2-10M)
AUD $310.00
In stock

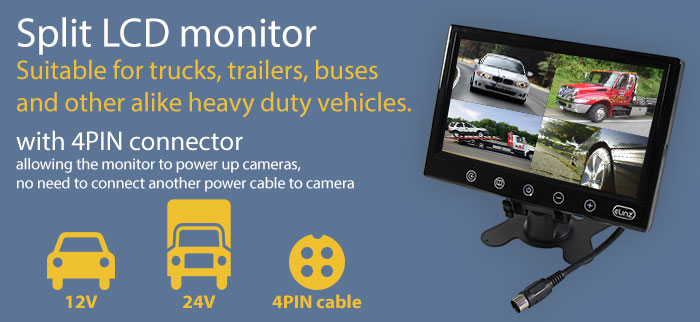

This 9" Quad screen colour rearview monitor is ideal for large vehicle where viewing for more than one camera at the same time is essential. Recommended for Buses/trucks/ Heavy equipment vehicles, safe and easy to install.

This monitor offers the ability to show the images of four cameras at once on the screen. It will also show camera independently either using the mode button or connecting the trigger wires to the reversing light and indicators. The monitor operates over a wide voltage range and is fully protected against over voltage or incorrect polarity. Power to the cameras is provided directly from the monitor. These can be used on both 12V or 24V vehicles.

This system only includes 1 pc reversing camera, extra reversing cameras and cables are sold separately.


Key Features


  • Built-in quad control box function, support four The camera can be applied at the front, corner and /or back of the vehicle you can view one camera while driving and a second camera will turn on automatically when reversing , or have all 4 camera’s showing at the same time, can be divided into 1,2 or 4 demo screen.
  • 9" Colour TFT-LCD wide screen
  • Professional advance 4 Pin Cable with 2x10m connector
    1. No need another power wire for camera
  • Built-in speaker
    1. Can hear sound from DVD/MP3/MP4
  • Suitable with 12V/24V power supply
    1. Ideal for regular 12V car battery or heavy duty 24V truck
  • Industrial Grade Heavy Duty IR Night Vision Colour CCD Camera
    1. High resolution image
    2. 120 degree wide field of view CCD cameras
    3. 18 built in IR LED
    4. Automatic night vision distance at 10 metres
    5. Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
  • Weather, shock and water resistant rated IP67/IP68
    1. High rating making it very durable and suitable in all environments
  • The image can be rotated up and down , left and right
    1. This is very handy so you can mount monitor up side and down or even sideways and still see the image the right way around.

Item Description


  • 9 inch TFT LCD monitor
  • 16:9 wide screen display
  • 4 Ways AV input
  • System: PAL & NTSC auto-switching
  • Resolution: 800x480 pixels high definition
  • Power supply : 12V/24V compatible
  • Operating voltage : 12-24V using power supply box
  • Built-in speaker
  • The display with 4 video frequency input (CH1, CH2, CH3, CH4)
  • Automatic switching wit trigger/manual switcher
  • Advanced 4PIN cable allowing monitor to power up camera.
  • Can supply you view angle of right, left and behind area

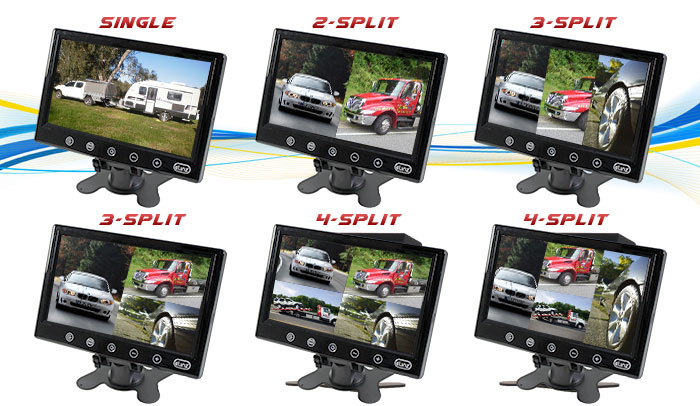

  • Can be divided into 1,2 or 4 demo screen
  • Heavy duty CCD rear view camera
  • CCD image sensor made by SHARP company
  • Waterproof function rated IP67/IP68
  • 18 Infrared LEDs with night vision
  • Heavy duty adjustable mounting bracket
  • Suitable with 12-24V power supply
  • 120º wide angle view
  • Hard metal cased, waterproof and mudproof

M70SPLTRV4PIN10M Reverse camera application

M70SPLTRV4PIN10M Reversing camera kits with 4 pin system

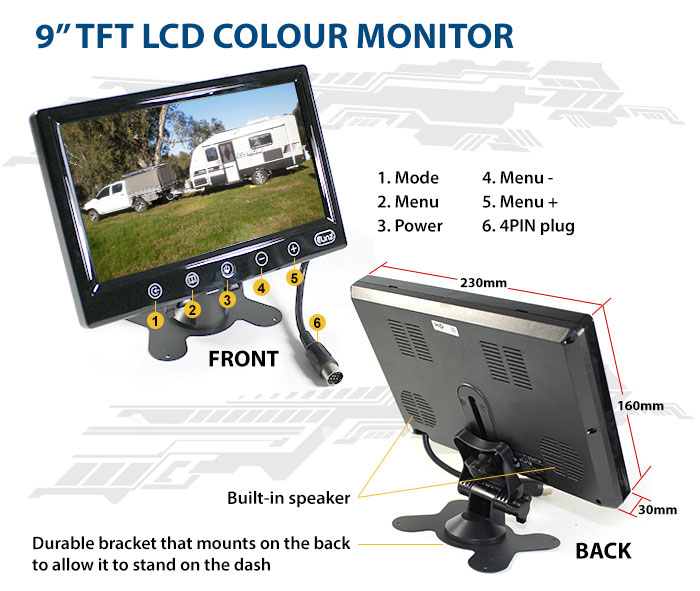

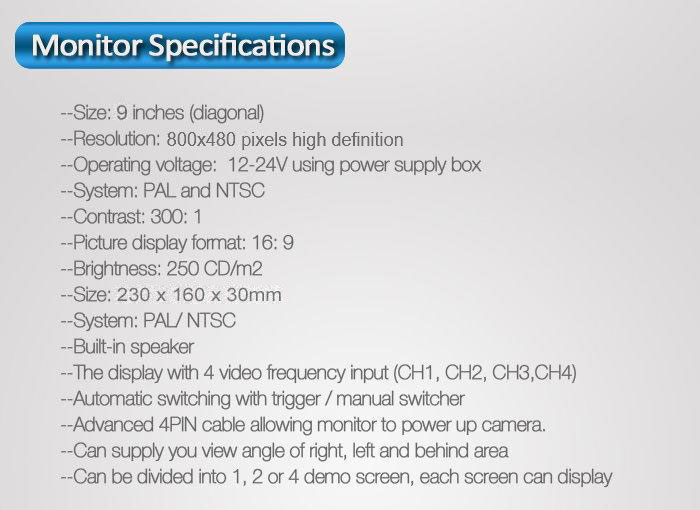

M70SPLTRV4PIN10M Reversing camera kit monitor specifications

M70SPLTRV4PIN10M Specifications of reversing camera kits
M70SPLTRV4PIN10M Reversing camera kits remote control

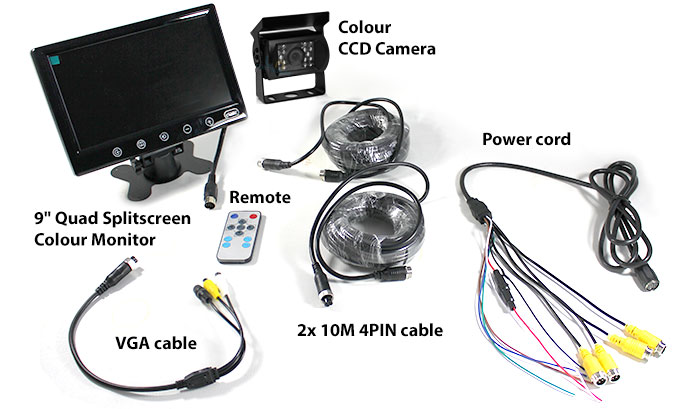

What's Included


M70SPLTRV4PIN10M Reversing camera for cars - accessories

Optional packages(please select from options above):

Click-here-reversing-camera kit options

Shipping Cubic 0.001104m3
