reversing camera with captions "IP68 waterproof, 5 MP camera, 120 degree view"

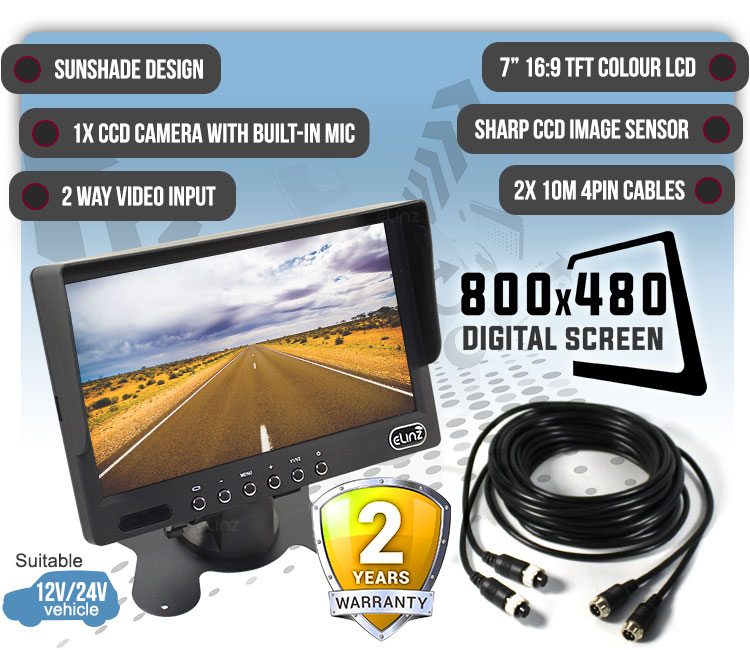

7" 16:9 TFT Colour LCD

  • 800x480 Digital Screen, Crystal Clear Image
  • Sunshade Design
  • 16:9/4:3 switch freely
  • Contrast, Colour, Brightness adjustable

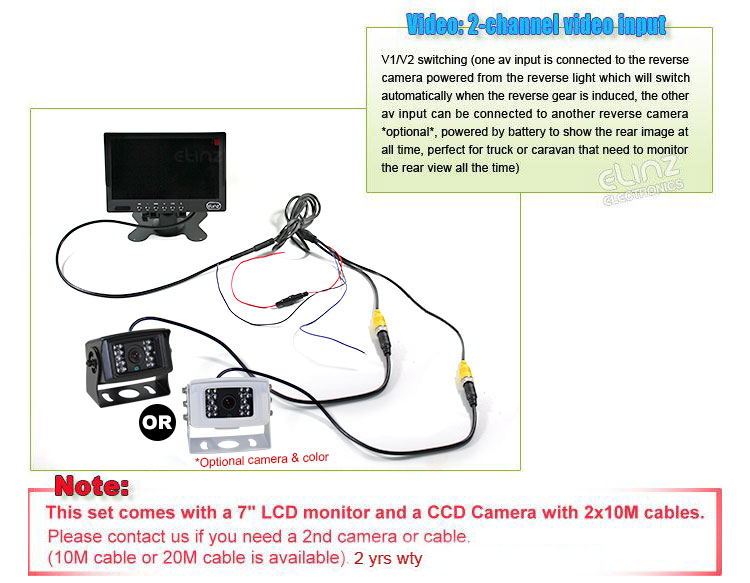

Two Way Video Inputs

  • Two video inputs, reversing first Connect 2 cameras to the monitor(2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.



Built-in Speaker

Can connect to DVD/ MP4/ Camera etc.

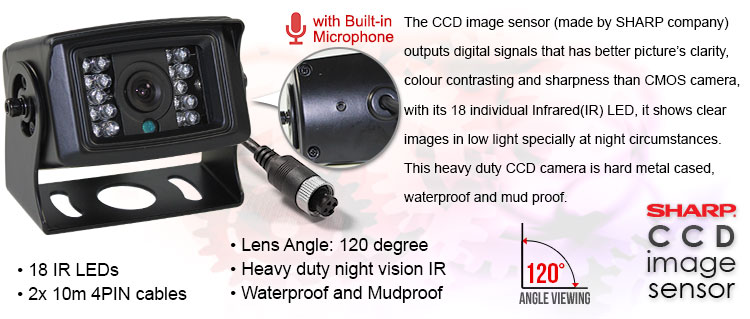

Colour Infrared Night Vision Waterproof CCD Reverse Camera

  • Camera with built-in MIC
  • This heavy duty CCD camera is hard metal cased waterproof and mud proof
  • Colour infrared night vision waterproof CCD reverse camera
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera

120° Wide angle viewing

  • Helps avoid accidents & injuries
  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness.
  • Get CCD not CMOS cameras if you want to view the camera while driving. CMOS cameras are not designed to work for long period of time, otherwise they could get damaged easily.

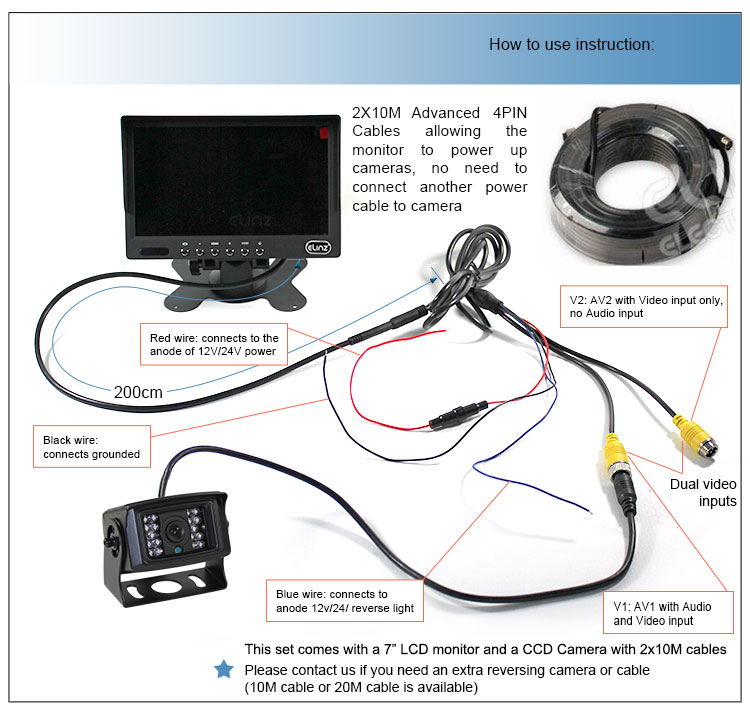

2x 10m Advanced 4PIN Cables

  • It allows the monitor to power up cameras, no need to connect to another power cable.

Can be Used with Trucks/ Caravans/ Cars

  • This monitor and reverse camera can be used with Trucks/ Caravans/ Cars



Application #1

Application #2



Easy to Install

  • You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.

The Image Can be Rotated Up and Down, Left and Right

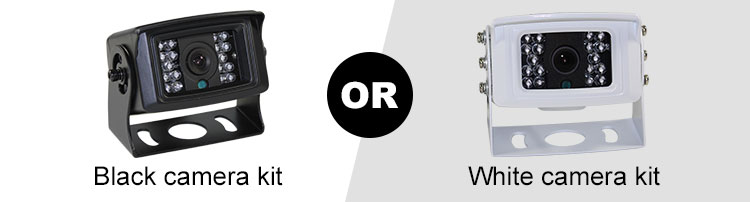

Casing Colour Variations of Camera

Remote Controller Labels



Product Dimensions and Labels





7" LCD Monitor HD 12V/24V 4PIN IR Colour CCD Reversing Camera Rearview Built-in Mic

7" LCD Monitor HD with a 12V/24V 4PIN IR Colour CCD Reversing Camera Rearview Built-in Mic, an advanced and reliable solution to enhance your vehicle's safety and convenience. The 7" 16:9 TFT Colour LCD monitor features an 800*480 digital screen, ensuring a crystal clear image with adjustable contrast, color, and brightness for optimal viewing.

Designed with versatility in mind, the monitor supports both 16:9 and 4:3 aspect ratios and offers two-way video inputs, enabling you to connect various devices such as DVD players, MP4 players, and cameras. Additionally, the reversing-first setup allows you to connect two cameras (2nd camera optional) and seamlessly switch between them while driving, with the second camera activating automatically when reversing.

The included 10m advanced 4PIN cables simplify installation, providing power to the cameras without the need for extra power cables, making setup a breeze, especially when connecting trailers or caravans. The heavy-duty CCD crystal clear 12/24-volt applicable reverse camera is built to withstand tough conditions, featuring a waterproof and mud-proof hard metal casing. Moreover, its sharp CCD image sensor from SHARP company delivers excellent clarity, color contrast, and sharpness.

The camera's infrared night vision capability ensures clear visibility day or night, while the built-in microphone adds an audio element to your reverse view. Whether you drive a truck, caravan, or car, this 7" LCD Monitor HD with 4PIN IR Colour CCD Reversing Camera is the ultimate tool to help you avoid accidents and injuries with its wide-angle viewing and continuous performance without overheating. Installing this system is a breeze, making it suitable for DIY enthusiasts who can effortlessly tap into their vehicle's 12V/24V power source for seamless integration.



PRODUCT HIGHLIGHTS

  • 7" 16:9 TFT Colour LCD
    1. 800*480 Digital screen, Crystal clear image
    2. Sunshade design
    3. 16:9/4:3 switch freely
    4. Contrast, Colour, Brightness adjustable
  • Two way video inputs
    1. Two video inputs, reversing first Connect 2 cameras to the monitor(2nd camera - optional). You can view one camera while driving and the 2nd camera will turn on automatically when reversing.
  • One way audio input
  • Built-in Speaker
  • Can connect to DVD/MP4/Camera etc
  • This monitor and reverse camera can be used with Trucks/ Caravans/Cars
  • 2x 10m advanced 4PIN cables, it allows the monitor to power up cameras, no need to connect to another power cable.
  • Connect and disconnect the cable between your trailer/caravan easily.
  • Get CCD not CMOS cameras if you want to view the camera while driving. CMOS cameras are not designed to work for long period of time, otherwise they could get damaged easily.
  • Easy to install. You can D.I.Y. as long as you can locate your vehicle's 12V/24V power source.
  • 120 degree Wide angle viewing helps avoid accidents & injuries
  • Camera with built-in MIC
  • Colour infrared night vision waterproof CCD reverse camera
  • Suitable for use with trucks / caravans / cars etc.
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness.
  • This heavy duty CCD camera is hard metal cased waterproof and mud proof
  • Can last for longer without heating up so you can show the rearview at all time

ITEM DESCRIPTION

  • Resolution: 800x480
  • 2 Video Inputs
  • One way audio input
  • Wireless remote control
  • Suitable for 12V/24V vehicle
  • The image can be rotated up and down, left and right
  • IR LED : 18pcs
  • 600 TVL
  • 2x 10m 4PIN cable
  • Usable lllumination : 0LUX(LED ON)
  • S/N Ratio : ≥48dB
  • Gamma Characteristic : 0.45
  • Video Output: 1Vp-p,75ohm
  • Operation Temperatrue : -20°C~+70°C RH95% Max
  • Lens: f = 2.5mm
  • Lens Angle: 120°
  • N.W : 350g
  • Connector Port: 4-pin aviation



cigarette charger and power harness

WHAT'S INCLUDED

1. 1x 7" TFT LCD Monitor

2. Power Cords

3. 1x Heavy Duty IR CCD Camera with built-in Microphone

4. Remote Control

5. 2x 10M 4PIN Cables

6. User Manual


*Product on the video may differ from the actual product. Video is displayed to show the importance and use of the product.
